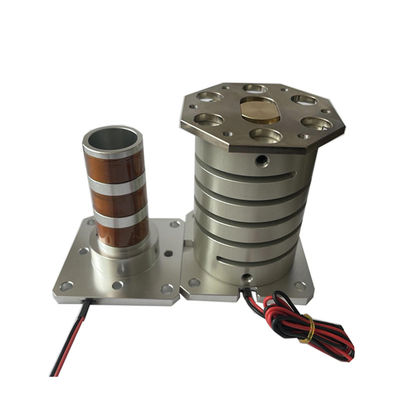

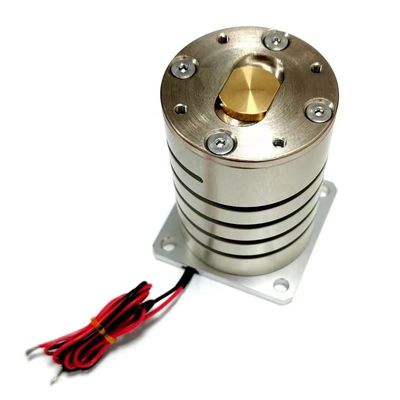

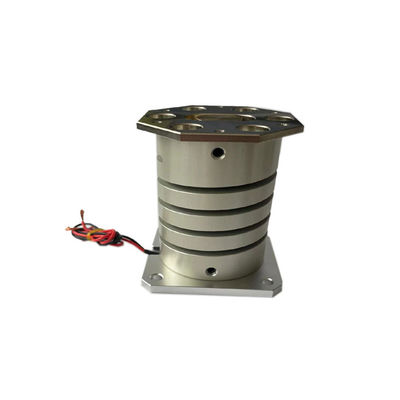

VCAZ0020 Flexible Vibrating Feeder Voice Coil Motor Fast Response Micro Size
| Tempat asal | Suzhou, Jiangsu, Tiongkok |
|---|---|
| Nama merek | SUPT MOTION |
| Sertifikasi | ISO9001, CE |
| Nomor model | VCAZ0020-0040-00A |
| Kuantitas min Order | 1 buah |
| Harga | USD 110-320 / Piece |
| Kemasan rincian | Busa tahan guncangan anti-statis dengan karton bergelombang tingkat ekspor |
| Waktu pengiriman | 3-5 hari untuk sampel, 5-7 hari untuk stok, massal untuk dinegosiasikan |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | 3000 buah per bulan |
Detail produk
| Nomor model | VCAZ0020-0040-00A | Tipe motorik | Motor Pengumpan Bergetar Mikro Fleksibel |
|---|---|---|---|
| Kekuatan puncak | 20,5 N | Kekuatan Kios Berkelanjutan | 8,9 N |
| Stroke total | 3mm | resistansi DC | 10,2 Ohm |
| Tegangan @ Fp | 25.9 v | Saat ini @ Fp | 2.6 A |
| Induktansi | 1,3 mH | Kekuatan @ Fp | 65,3 watt |
| Berat aktuator | 110g | Kehidupan Pelayanan | >=100 juta siklus |
| Menyoroti | Micro Vibrating Feeder Actuator,Flexible Voice Coil Motor,Battery Cell Feeding Motor |
||
Deskripsi Produk
Product Overview The VCAZ0020-0040-00A flexible vibrating hopper voice coil motor brings tiny, programmable vibrations to lithium battery cell sorting and small new energy component handling. Based on the VCAZ series direct-drive platform, it offers a 3mm stroke and a peak force of 20.5 Newtons, while staying compact and lightweight—enough to fit into sorting equipment with limited space. Because the amplitude and frequency are electronically controlled rather than mechanical
