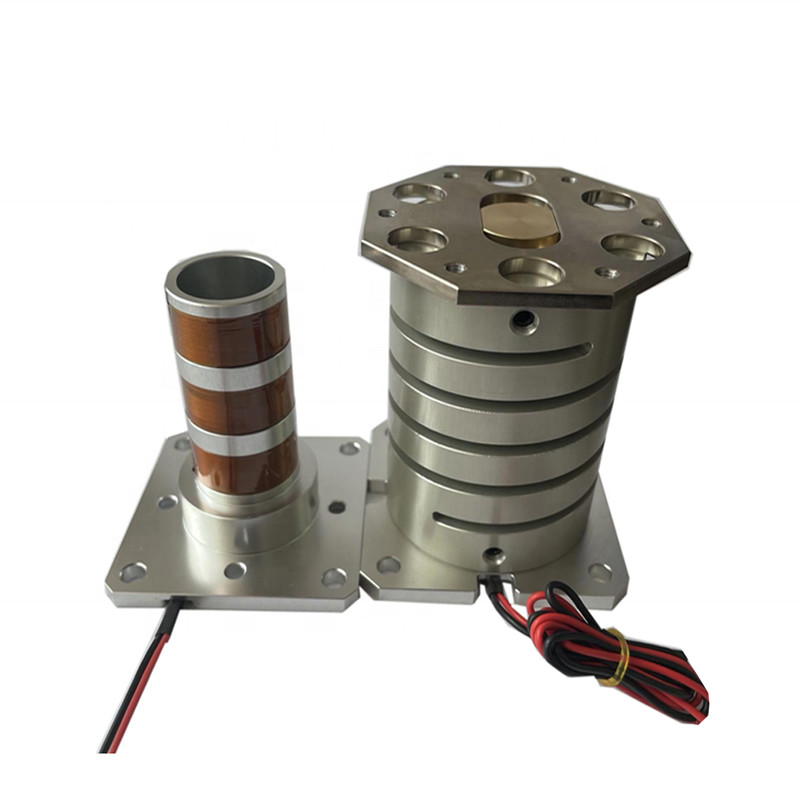

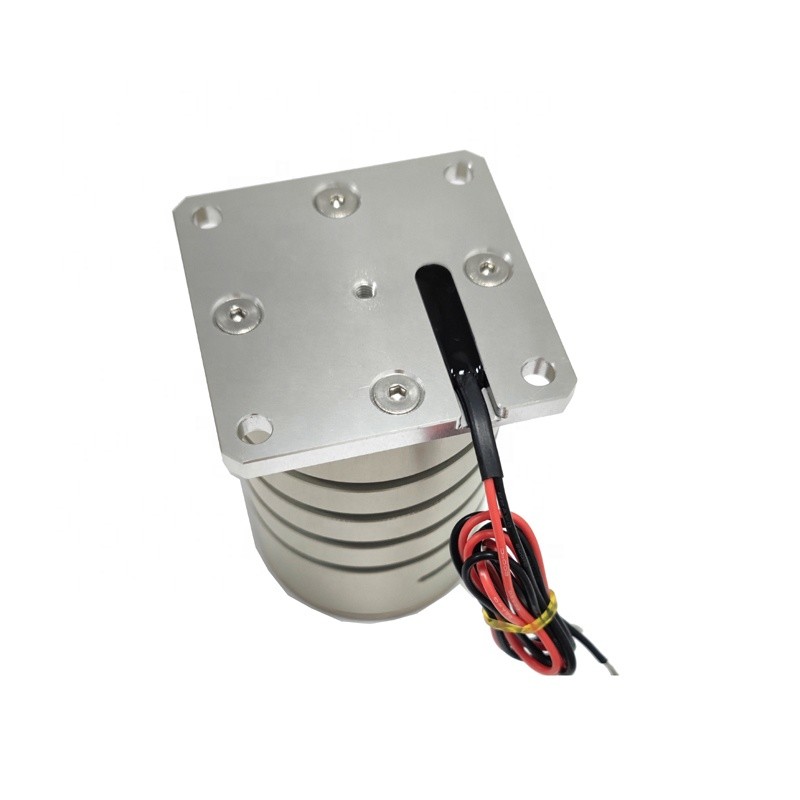

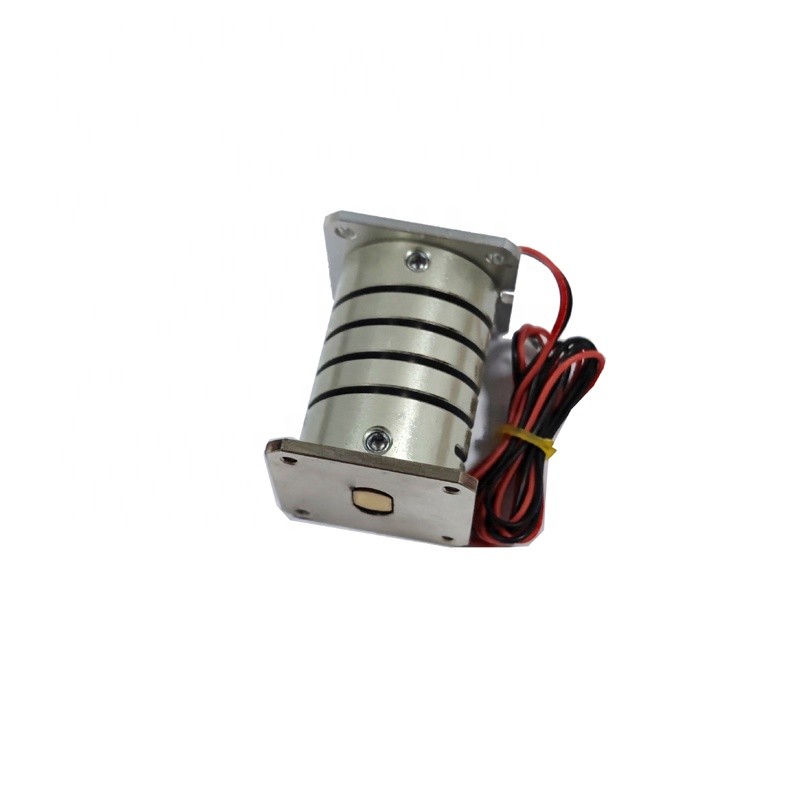

VCAZ0020 High Precision Vibrating Feeder Voice Coil Motor Fast Response
| Tempat asal | Suzhou, Jiangsu, Tiongkok |
|---|---|
| Nama merek | SUPT MOTION |
| Sertifikasi | ISO9001, CE |
| Nomor model | VCAZ0020-0040-00A |
| Kuantitas min Order | 1 buah |
| Harga | USD 115-320 / Piece |
| Kemasan rincian | Busa tahan guncangan anti-statis dengan karton bergelombang tingkat ekspor |
| Waktu pengiriman | 3-5 hari untuk sampel, 5-7 hari untuk stok, massal untuk dinegosiasikan |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | 3000 buah per bulan |
Detail produk
| Nomor model | VCAZ0020-0040-00A | Tipe motorik | Motor Pengumpan Bergetar Presisi Tinggi |
|---|---|---|---|
| Kekuatan puncak | 20,5 N | Kekuatan Kios Berkelanjutan | 8,9 N |
| Stroke total | 3mm | resistansi DC | 10,2 Ohm |
| Tegangan @ Fp | 25.9 v | Saat ini @ Fp | 2.6 A |
| Induktansi | 1,3 mH | Kekuatan @ Fp | 65,3 watt |
| Berat aktuator | 110g | Kehidupan Pelayanan | >=100 juta siklus |
| Menyoroti | High Precision Vibrating Feeder,Voice Coil Feeder Motor,Automotive Connector Feeder |
||
Deskripsi Produk
Product Overview The VCAZ0020-0040-00A high precision vibrating feeder voice coil motor is a larger, higher-thrust member of the SUPT MOTION VCAZ series, designed for automotive connector and hardware feeding where orientation accuracy is critical. With a 20.5 N peak force, an 8.9 N continuous stall force and a 3 mm stroke, it drives heavier parts smoothly while keeping positioning tight enough for automated assembly. The direct-drive voice coil architecture removes the
