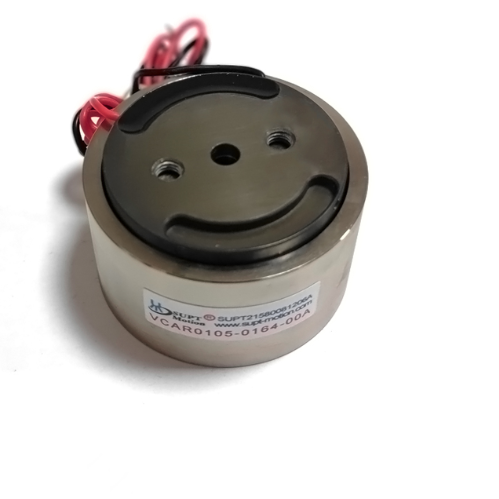

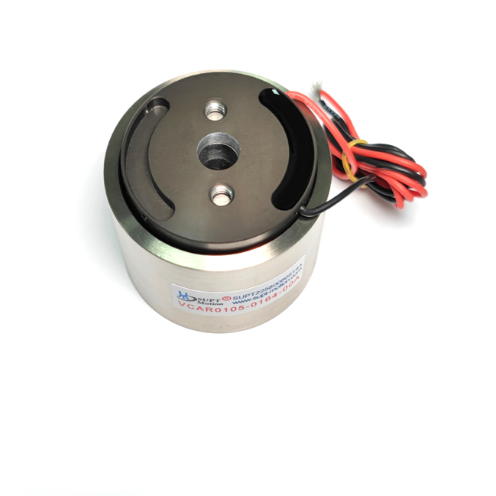

105N Thrust High Response Cylindrical Voice Coil Motors For Automated Equipment
| Tempat asal | Suzhou, Cina |
|---|---|
| Nama merek | SUPT MOTION |
| Sertifikasi | CE, ISO9001 |
| Nomor model | VCAR0105-0164-00A |
| Kuantitas min Order | 1 buah |
| Harga | $60-$120 / Piece |
| Kemasan rincian | Kotak bermerek SUPT MOTION dengan sisipan busa antistatis, karton bergelombang tingkat ekspor |
| Waktu pengiriman | 3-5 hari untuk sampel, 15-25 hari untuk pesanan massal |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | 5000 buah per bulan |
Detail produk
| Nomor model | VCAR0105-0164-00A | Tipe Motor | Motor Kumparan Suara Silinder |
|---|---|---|---|
| Kekuatan puncak | 105N | Kekuatan kontinu | 35.4N |
| Stroke total | 16.4mm | Tegangan maks | 20.1V DC |
| KEMBALI EMF KONSTAN | 11,5 V/m/s | Berat kumparan | 150 gram |
| Diameter stator | 60,4mm | Panjang Keseluruhan | 40.4mm |
| Kelas Isolasi | Kelas H | ||
| Menyoroti | Fast Response Voice Coil Motor,1ms Mechanical Time Constant,High Acceleration Linear Motion |
||
Deskripsi Produk

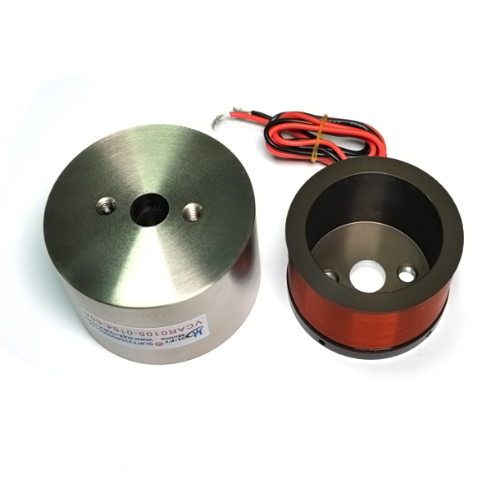

Product Overview The VCAR0105-0164-00A is a cylindrical voice-coil motor specifically designed for high-speed motion control. It utilizes the moving-coil principle to directly convert electrical current into linear thrust, with no gears, belts, or lead screws in the motion chain. This direct-drive design eliminates backlash and mechanical compliance, enabling the motor to accelerate rapidly and stabilize at the target position within approximately one millisecond.This voice
