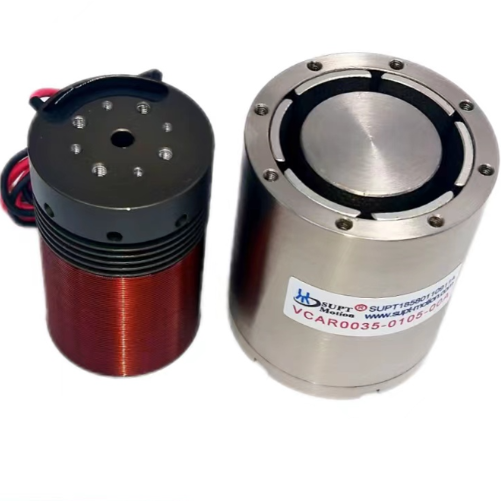

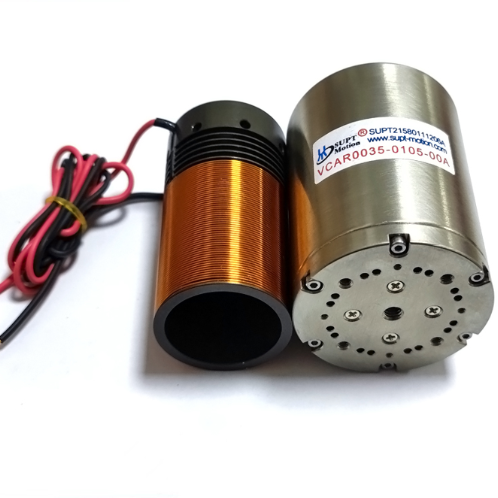

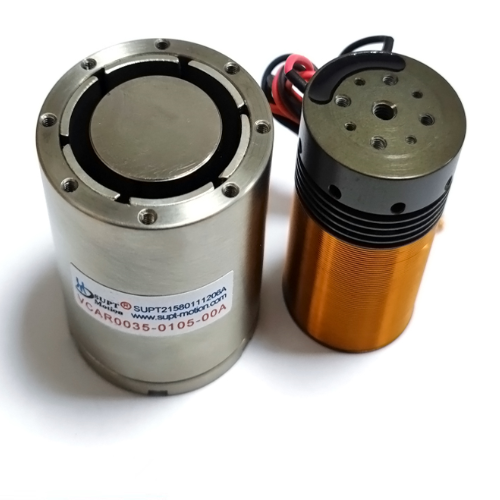

Zero Backlash Direct Drive Voice Coil Motor VCAR0035 35N Peak Force
| Tempat asal | Tiongkok Suzhou |
|---|---|
| Nama merek | SUPT MOTION |
| Sertifikasi | CE, ISO9001 |
| Nomor model | VCAR0035-0105-00A |
| Kuantitas min Order | ≥1 |
| Harga | $135-$185 |
| Kemasan rincian | Kemasan karton |
| Waktu pengiriman | 1-5 produk 5-7 hari pengiriman, sampel 3-5 hari, jumlah besar untuk dinegosiasikan |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | Untuk dinegosiasikan |
Detail produk
| Tipe Motor | Motor Kumparan Suara (VCM) | Kekuatan puncak | 35N |
|---|---|---|---|
| Kekuatan kontinu | 15,6N (pada 25°C) | Stroke total | 10.5mm |
| Tegangan maks | 11.9V | KEMBALI EMF KONSTAN | 5V/m/s |
| Berat kumparan | 91G | Diameter stator | 50mm |
| Panjang Keseluruhan | 67mm | Akurasi Posisi | Presisi Tinggi ±1μm |
| Waktu respons | <5ms | Modus Berkendara | Drive Langsung, Nol Serangan Balik |
| Suhu Operasional | -20°C hingga +80°C | ||
| Menyoroti | Zero Backlash Direct Drive VCM,High Precision Voice Coil Actuator,Cylindrical Linear Motion Motor |
||
Deskripsi Produk
The VCAR0035-0105-00A is a high-performance cylindrical voice coil motor designed specifically for applications requiring zero backlash, direct-drive precision, and fast dynamic response. As part of the SUPT MOTION VCAR0035 series, this voice coil motor delivers a peak thrust of 35 N in a compact form factor, making it an excellent choice for precision positioning systems, semiconductor manufacturing equipment, optical alignment platforms, and medical device automation.
