13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control
| Tempat asal | Cina, Suzhou |
|---|---|
| Nama merek | SUPT MOTION |
| Sertifikasi | CE, ISO9001，CCC |
| Nomor model | Seri VCAS |
| Kuantitas min Order | 1 buah |
| Harga | $99-$220 |
| Kemasan rincian | Kemasan yang disesuaikan dll. |
| Waktu pengiriman | 1-5pcs, 5 hari. >20pcs,Untuk dinegosiasikan |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | Untuk dinegosiasikan |
Detail produk
| Fitur Lindungi | Benar-benar Tertutup | Nomor model | VCAS0013-0343-00A |
|---|---|---|---|
| Metode Pengendalian | Elektronik | Stroke total | 34.3mm |
| Konstruksi | Magnet Permanen | Kekuatan puncak | 13N |
| Ukuran | 68,3×60×34,8 mm | Kata kunci | Motor linier kumparan suara |
| Voltase | 12.6V | Berat kumparan | 40G |
| Kecepatan | Kecepatan tinggi (rpm) |
Deskripsi Produk
Product Description:
The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm .
Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.

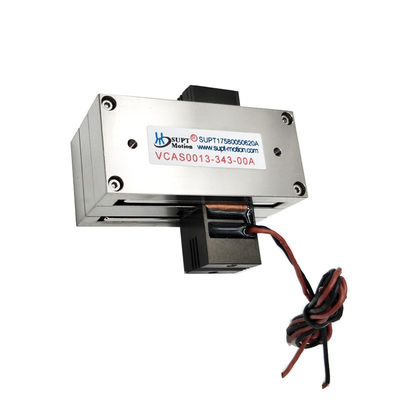

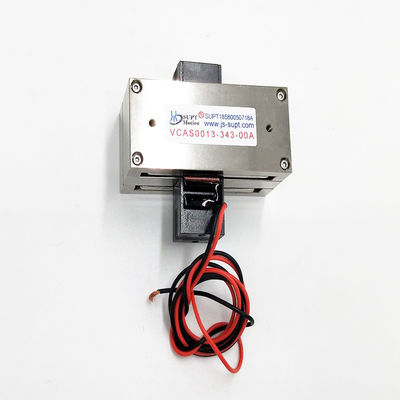

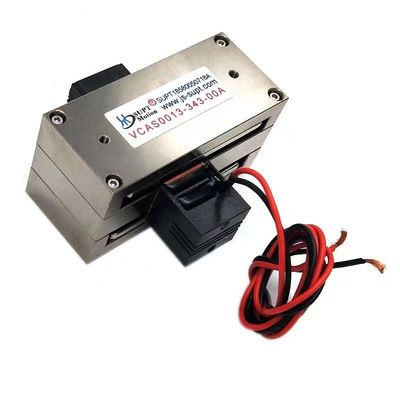

The VCAS0013-0343-00A model of this rectangular voice coil motor has a peak thrust of 13 N and a total stroke of 34.3 mm, making it suitable for proportional valve actuation, medium-load positioning, and active damping systems. Its rated continuous thrust at 25°C is 8 N, ensuring reliable operation even in harsh environments.
In fluid control valve applications, proportional solenoid valves often suffer from hysteresis and limited bandwidth. In contrast, rectangular voice coil motors feature a linear force-current relationship throughout their operating stroke and are free from magnetic saturation, enabling precise flow regulation. The VCAS0013-0343-00A can directly replace solenoid valves in gas or liquid valves, offering faster response times and lower power consumption.
This product can also serve as a Z-axis actuator for light-force crimping or spring testing. The 34.3 mm stroke accommodates a wide range of workpiece sizes, while the 13 N peak force is sufficient to meet the demands of light-duty riveting or contact force control.
Features:
-
Peak Force:13N
-
Continuous Force @25℃: 8N
-
Total Stroke: 34.3mm
-
Max Voltage: 12.6 V
-
Back EMF Constant: 5.8V/m/s
-
Coil Weight: 40 g
-
Dimensions (L×W×H): 68.3×60×34.8 mm
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Length (mm) |
Width (mm) |
Height (mm) |
| VCAS0002-0498-00A | 2.1 | 1.3 | 50 | 11.3 | 1.3 | 15 | 72 | 42.6 | 33 |
| VCAS0002-0747-00A | 2.1 | 1.3 | 74.7 | 11.3 | 1.3 | 15 | 100.5 | 42.6 | 37 |
| VCAS0006-0030-00A | 6.1 | 3.2 | 3 | 13.3 | 4.6 | 18.2 | 25.1 | 34.1 | 27 |
| VCAS0006-0099-00A | 6.1 | 3.2 | 10 | 13.7 | 4.6 | 18.2 | 33.5 | 34.1 | 26.9 |
| VCAS0013-0343-00A | 13 | 8 | 34.3 | 12.6 | 5.8 | 40 | 68.3 | 60 | 34.8 |
| VCAS0065-1000-00A | 65 | 22.4 | 100 | 28.7 | 9.7 | 135 | 170 | 59.6 | 81.9 |
VCAS0013-0343-00A:
| Parameter | value | Parameter | value |
| Model | VCAS0013-0343-00A | Peak thrust | 13N |
| Continuous Thrust (25°C) | 8N | Total stroke | 34.3mm |
| Maximum Voltage | 12.6V | Back-EMF constant | 5.8V/m/s |
| Length | 68.3mm | Width | 60mm |
| Height | 34.8mm | Coil Weight | 40g |
Applications:
1.Proportional gas/fluid valves
2.Active vibration damping
3.Spring/force tester actuation
4.Light pressing / riveting
5.Micro-positioning of tools
| The main application of a voice coil motor: | ||||||||||
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics. | ||||||||||
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system. | ||||||||||
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. | ||||||||||
| 4.Vibration System:Shaking table, vibration platform. | ||||||||||
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. | ||||||||||
| 6.Aviation Technology:Flight control system, pilot feedback system. | ||||||||||
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. | ||||||||||
| 8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery. |
