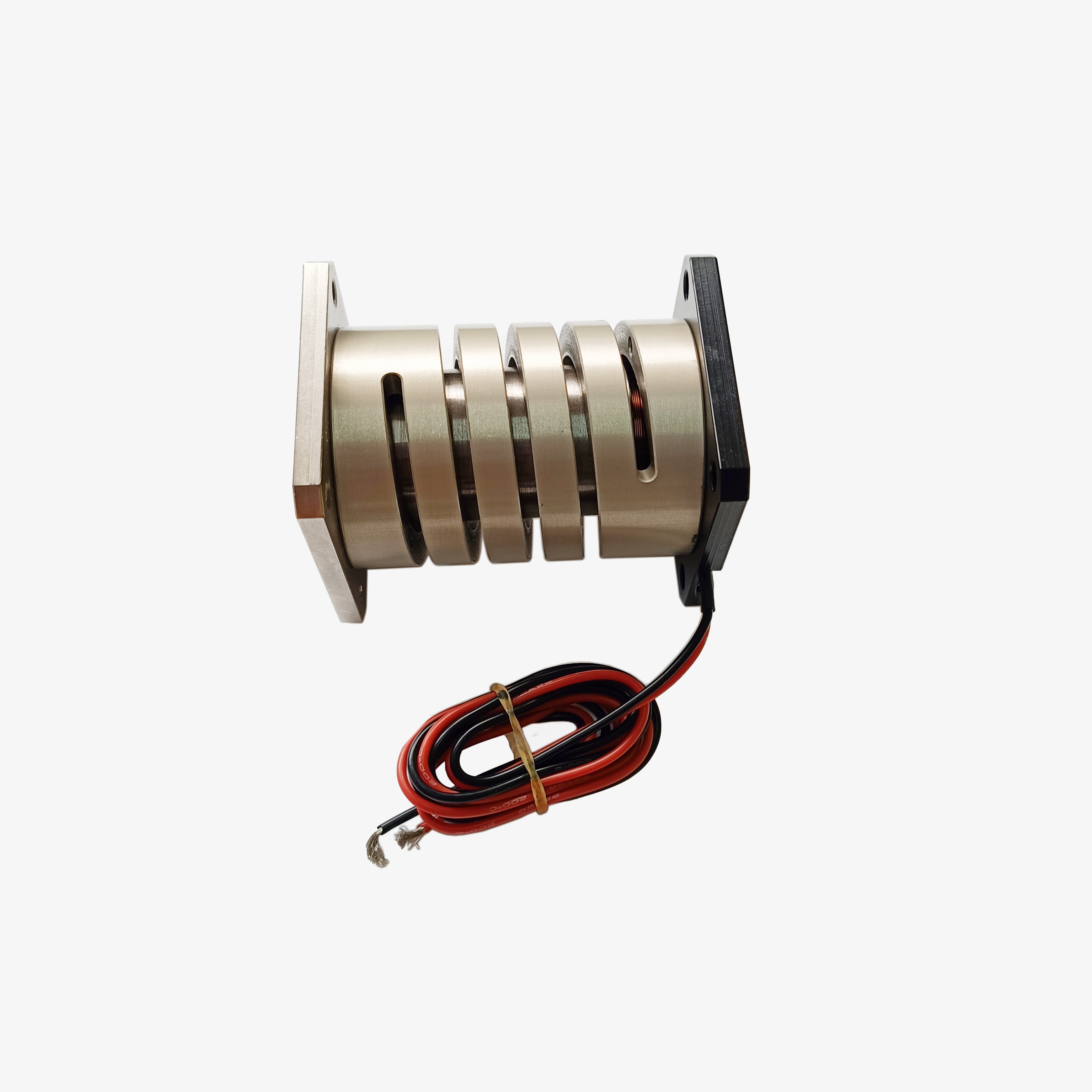

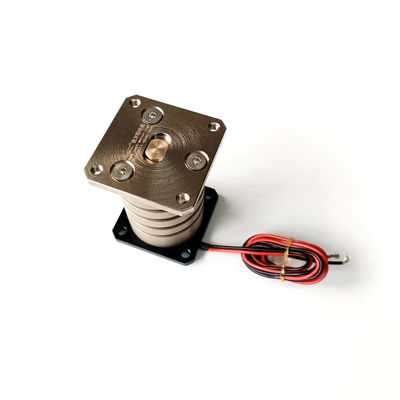

High Speed Linear Vibration Voice Coil Motor for Industrial Automation
| Tempat asal | Cina, Suzhou |
|---|---|
| Nama merek | SUPT MOTION |
| Sertifikasi | ISO9001 |
| Nomor model | Seri VCAZ |
| Kuantitas min Order | 2 buah |
| Harga | $100-$205 |
| Kemasan rincian | Kemasan yang disesuaikan dll. |
| Waktu pengiriman | 1-5pcs, 5 hari. >20pcs,Untuk dinegosiasikan |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | Untuk dinegosiasikan |
Detail produk
| Tipe Motor | Motor Getaran | Kekuatan puncak | 11N |
|---|---|---|---|
| Spesifikasi Model | VCZA0011-0040-00A | Mulai Saat Ini | 2A |
| Nilai Tegangan | 15v | Kekuatan @ Fp | 30W |
| Stroke | 4mm | Berat aktuator | 86g |
| Kecepatan | Tinggi | Kekuatan kontinu | 4.6N |
| Jenis | Motor Mikro | Fitur Lindungi | Benar-benar Tertutup |
Deskripsi Produk
Product Description:
SUPTMOTION VCAZ Series High-Speed Linear Vibrating Voice Coil Motors are specifically designed for industrial automation equipment requiring rapid motion response and precise positioning. In high-speed automation systems, motion actuators must deliver both high acceleration and exceptional motion stability to maintain production efficiency.
The VCAZ series linear vibrating voice coil motor is engineered to deliver smooth motion, zero backlash, and high-precision positioning performance. With its high-frequency response characteristics, this actuator rapidly responds to motion commands, enabling extremely fast acceleration and deceleration. This allows automation systems to execute rapid positioning and repetitive motion cycles while maintaining precise control.
The compact design of linear vibrating voice coil motors makes them suitable for integration into robotic systems, motion platforms, and automated production equipment. Their lightweight structure minimizes system inertia while maintaining robust thrust capabilities.
Vibrating voice coil motors utilize a frictionless electromagnetic drive system, offering extended lifespan and high reliability. The absence of mechanical contact components significantly reduces wear and maintenance requirements.
With its high-speed operation, precise motion control, compact design, and long service life, the linear vibrating voice coil motor has become the ideal motion solution for modern industrial automation systems.
Features:
Type: Vibration Motor, Flexible Vibration Disc Voice Coil Motor, Vibration Voice Coil Motor,Linear Vibration Voice Coil Motor
1.High speed motion control
2.Direct drive linear motor design
3.Smooth frictionless movement
4.Compact actuator structure
5.Long service life
Product Parameters:
Stroke: 4 mm
Continuous Force: 4.6 N
Peak Force: 11 N
Max Speed: 2 m/s
Repeatability: ±0.5 μm
| Model Number | VCAZ0010-0020-00A | |||
| Coil parameters | Tolerance | Symbol | Value | Unit |
| DCR | ±10% | R | 9.5 | Ω |
| Peak Voltage | standard value | Vp | 14.8 | V |
| Maximum current | standard value | Ip | 1.6 | A |
| Force constant | ±7.5% | KF | 2.7 | N/A |
| Back EMF constant | standard value | KD | 2.7 | V/M/Sec |
| Inductance | ±30% | L | 0.37 | mH |
| Actuator paramters | Symbol | Value | Unit | |
| Peak force | Fp | 10.2 | N | |
| Continuous stall force | Fc | 2.2 | N | |
| Actuator coonstant | Ka | 0.87 | N//W | |
| Electrical time constant | Te | 0.04 | milli-sec | |
| Pmax | Pp | 24 | W | |
| Stroke | S | 1.5 | mm | |
| Clearance of each side of coil | CL | 0.8 | mm | |
| Thermal resistance | Oth | 20 | ℃/W | |
| Maximum coi temp allowed | Tmax | 150 | ℃ | |
| Weight of coil | WTc | 13 | g | |
| Weight of magnet steel | WTE | 56 | g | |
| Weight of Actuator | WTa | 69 | g | |
Applications:
1.Industrial automation systems
2.Robotics motion modules
3.High-speed positioning stages
4Automated production lines
| The main application of a voice coil motor: | ||||||||||||
| 1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics. | ||||||||||||
| 2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry | ||||||||||||
| injection system. | ||||||||||||
| 3.Micro Machine industry:Feed systems, micro drilling, precision stamping. | ||||||||||||
| 4.Vibration System:Shaking table, vibration platform. | ||||||||||||
| 5.Medical field:Micro-injection system, respiratory equipment, testing equipment. | ||||||||||||
| 6.Aviation Technology:Flight control system, pilot feedback system. | ||||||||||||
| 7.Commercial use field:Computer cooling pump miniature camera auto focus system. | ||||||||||||
| 8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery. |
