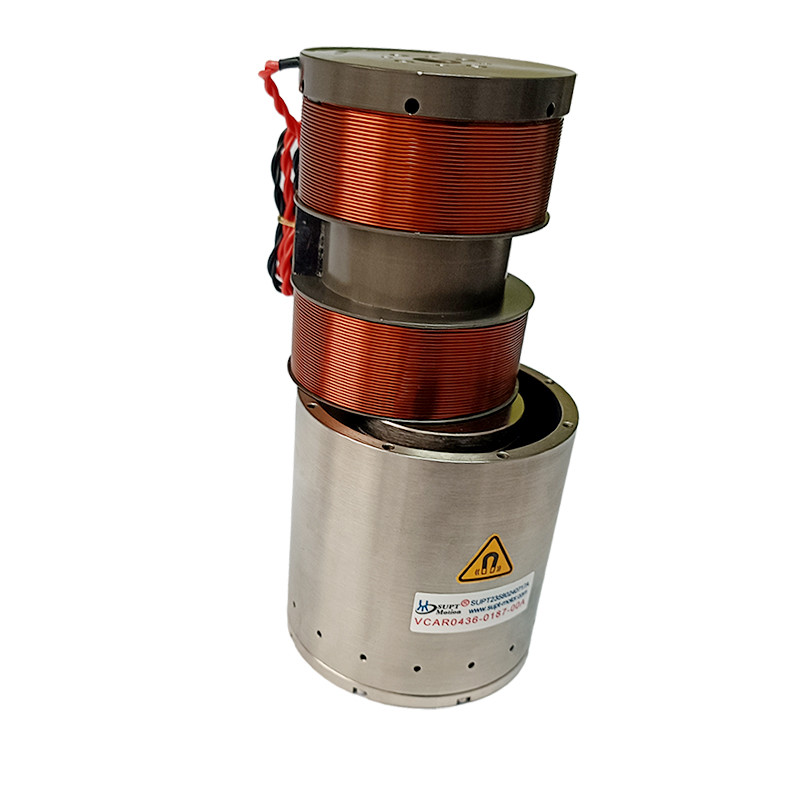

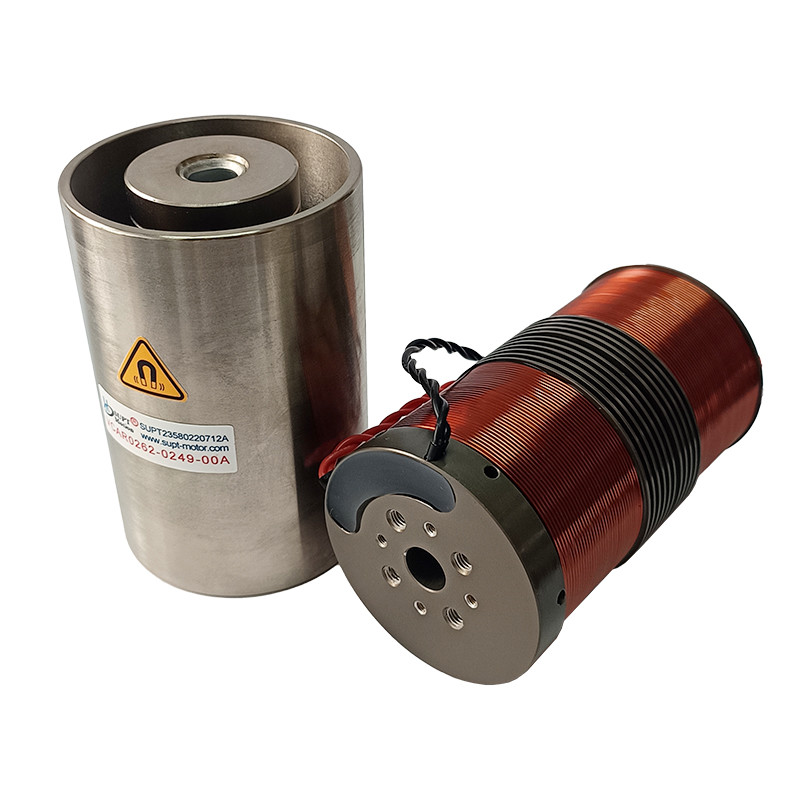

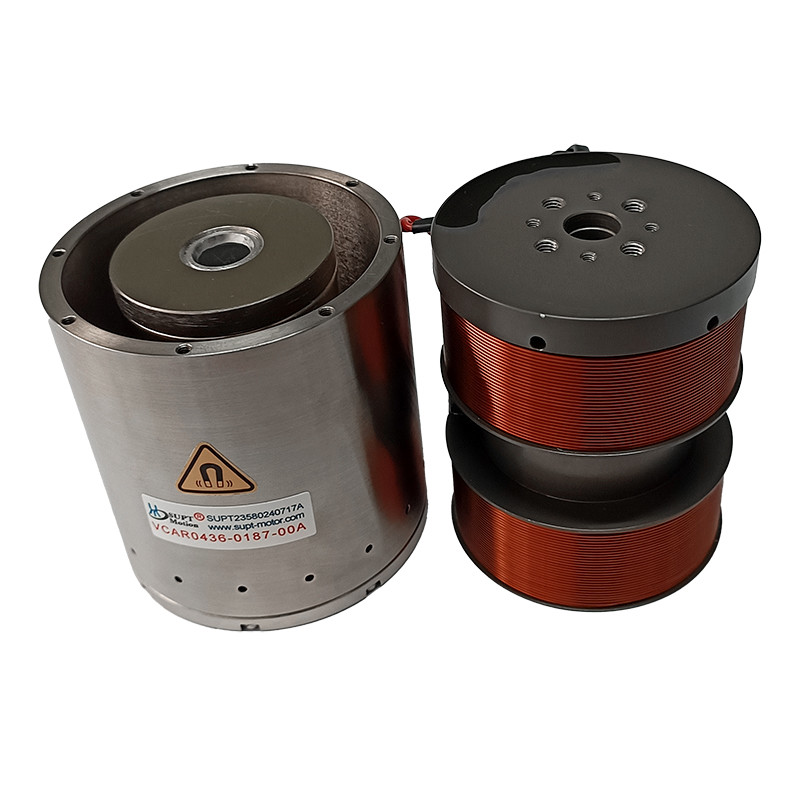

High Frequency VCAR Series Voice Coil Motors For Medical Imaging

  • High Frequency VCAR Series Voice Coil Motors For Medical Imaging
  • High Frequency VCAR Series Voice Coil Motors For Medical Imaging
  • High Frequency VCAR Series Voice Coil Motors For Medical Imaging
  • High Frequency VCAR Series Voice Coil Motors For Medical Imaging
Tempat asal Cina, Suzhou
Nama merek SUPT MOTION
Sertifikasi CE, 3C,ISO9001
Nomor model seri VCAR
Kuantitas min Order 1 buah
Harga $111-$260
Kemasan rincian Kemasan disesuaikan dll.
Waktu pengiriman <i>1-5pcs ,5 days .</i> <b>1-5pcs, 5 hari.</b> <i>&gt;20pcs ,To be negotiated</i> <b>&gt; 20 pcs, un
Syarat-syarat pembayaran T/T
Menyediakan kemampuan untuk dinegosiasikan

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Stroke total 56.3mm Model VCAR0087-0563-00A
Kekuatan puncak 87N Berat 177g
Aplikasi Produk Otomatis Warna Perak/hitam
Gaya kontinyu (N) 17.5 Penggantian Sikat
Lindungi fitur Benar -benar tertutup Jenis Motor Mikro
Menyoroti

High Frequency VCAR voice coil motor

,

Medical imaging voice coil motor

,

VCM motor for medical applications
Tinggalkan pesan
Deskripsi Produk

Product Description:

VCAR Voice Coil Motor: High responsiveness, high acceleration, low-mass coil. No cogging effect, zero hysteresis. Simple structure, lightweight, high-frequency response, smooth operation.

VCAR series motors are designed for medical imaging equipment, delivering nanometer-level precision and rapid response to drive microscopes, CT scanning platforms, and surgical assist devices.
Low-inertia movers and cogging-free motion ensure smooth operation, preventing image blur and enabling high-quality data acquisition for each scan.

Medical diagnostic equipment demands exceptionally high precision in positioning and smoothness of motion. VCAR voice coil motors deliver slotless, frictionless linear motion, enabling continuous, stable, and reliable micro-displacement drive for microscopic imaging systems, surgical navigation devices, and in vitro diagnostic instruments. VCAR Voice Coil Motor high-speed response provides critical support for real-time imaging systems, while low heat generation and energy consumption ensure consistent performance during prolonged medical procedures.

Features:

Nanometer-level positioning for precise imaging

Millisecond response for focus and scan adjustments

Smooth, frictionless, cogging-free motion

Compact micro-sized design for medical devices

Lightweight mover for rapid start/stop

High-frequency response for fast imaging and scanning

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72
VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3
VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8
VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110

143.7

Peak force: 0.73 N – 1351 N

Continuous force: 0.42 N – 376.8 N

Stroke: 1 mm – 63 mm

Voltage: 4.8 V – 73.5 V

Back-EMF constant: 0.6 – 48.6 V/m/s

Mover mass: 2.7 g – 130 g

Stator diameter: 20 mm – 170 mm

Coil insertion length: 11.2 – 143.7 mm

High Frequency VCAR Series Voice Coil Motors For Medical Imaging 0

Applications:

Automated microscopy focusing

Surgical assist platforms

CT/MRI micro-positioning

Pathology slide scanning automation

Precision 3D medical reconstruction

Laboratory automation systems
